PRODUCTION EQUIPMENT

Cutting Lines

CL-HYD

Cutting Line, Hydraulic

  • Touch Screen Controls

  • USB cut list upload capability

  • Available in 2-tub or 3-tub configurations

  • Horizontal Payoff, hydraulic drive and brake

  • Mainframe assembly, hydraulic

  • Cat Drive assembly, hydraulic

  • Measuring System/Counter assembly with Encoder

  • Shear assembly, hydraulic

  • Electrical Manual Control for 2-tubs or 3-tubs

  • Roller Frame assembly

  • Tub Diverter Stand with Guide Tubes

  • Tubs (48” or 54” diameter") with hydraulic brakes

CL-SERVO

Cutting Line, Servo-Electric

  • Touch Screen Controls

  • USB cut list upload capability

  • Available in 2-tub or 3-tub configurations

  • Horizontal Payoff, servo-electric motor driven with tension control

  • Mainframe assembly

  • Cat Drive assembly, electric variable driven

  • Measuring System/Counter assembly with Encoder

  • Shear assembly, servo-electric motor driven

  • Electrical Manual Control for 2-tubs or 3-tubs

  • Roller Frame assembly

  • Tub Diverter Stand with Guide Tubes

  • Tubs (48” or 54” diameter") with pneumatic brakes

Extrusion Lines

EXT

Extrusion Line

  • With either a 3.0” or 3.5" Extruder, complete with all Controls

  • Single or Dual Payoff with Tension and Stop Brakes

  • Grease Station for applying and sizing grease - mounted on Platform Scale to monitor grease usage

  • Matched Crosshead Die with Tips and Dies for 0.5” strand

  • Vacuum Loader for Plastic Resin

  • Additive Feeder for color, with Controls

  • Drawer Magnet

  • Advanced Cooling Trough with Misting Thermal Break

  • Recirculating Pump and Heat Exchanger

  • Single or Dual Take-Up with Power Lift, Power Clamp, Level Wind, and self-adjusting speed control

  • OPTIONAL Extrusion Die for corrosion-inhibiting Wax

  • OPTIONAL Tip and Die system for 0.6” and other diameter strand

  • OPTIONAL Laser Measuring System

Take-Up

TU

Take-Up for Extrusion Line

  • Single Take-Up

  • Power Lift

  • Power Clamp

  • Level Wind

  • Self-adjusting Speed Control

Sheathing Stripper

SS5

Sheathing Stripper for 0.5” Strand

  • Fully Guarded

  • Includes Foot Pedal

  • Includes Stand

Fixed-End Seaters

FES5PL

FES5PUA

Pull-On Seater for 0.5”

  • Pull-on to full wedge seating force

  • Works with hydraulic pump with auto-dump valve

Push-On Seater for 0.5”

  • Works with hydraulic pump with auto-dump valve

  • Includes bearing plates for bare anchorages and encapsulated anchorages

POS5E.1

Pull-On Seater for 0.5” Encapsulated

  • Pull-on to full wedge seating force

  • Works with hydraulic pump with auto-dump valve

  • Pneumatic-activated grippers and wedge pre-seater

  • Used in conjunction with 9” Guide Tube

  • Works great with the TP0509 Tube Pusher and Grease Cap Setter

Tube Pusher / Cap Setter

TP0509

Tube Pusher / Cap Setter for 0.5” Encapsulated Anchors

  • Installs the 9” Guide Tube onto a Fixed End Encapsulated Anchor

  • Installs the Grease Cap onto the Anchor at the same time

  • Easy to use

  • Works great in conjunction with the POS5E.1 Pull-On Seater

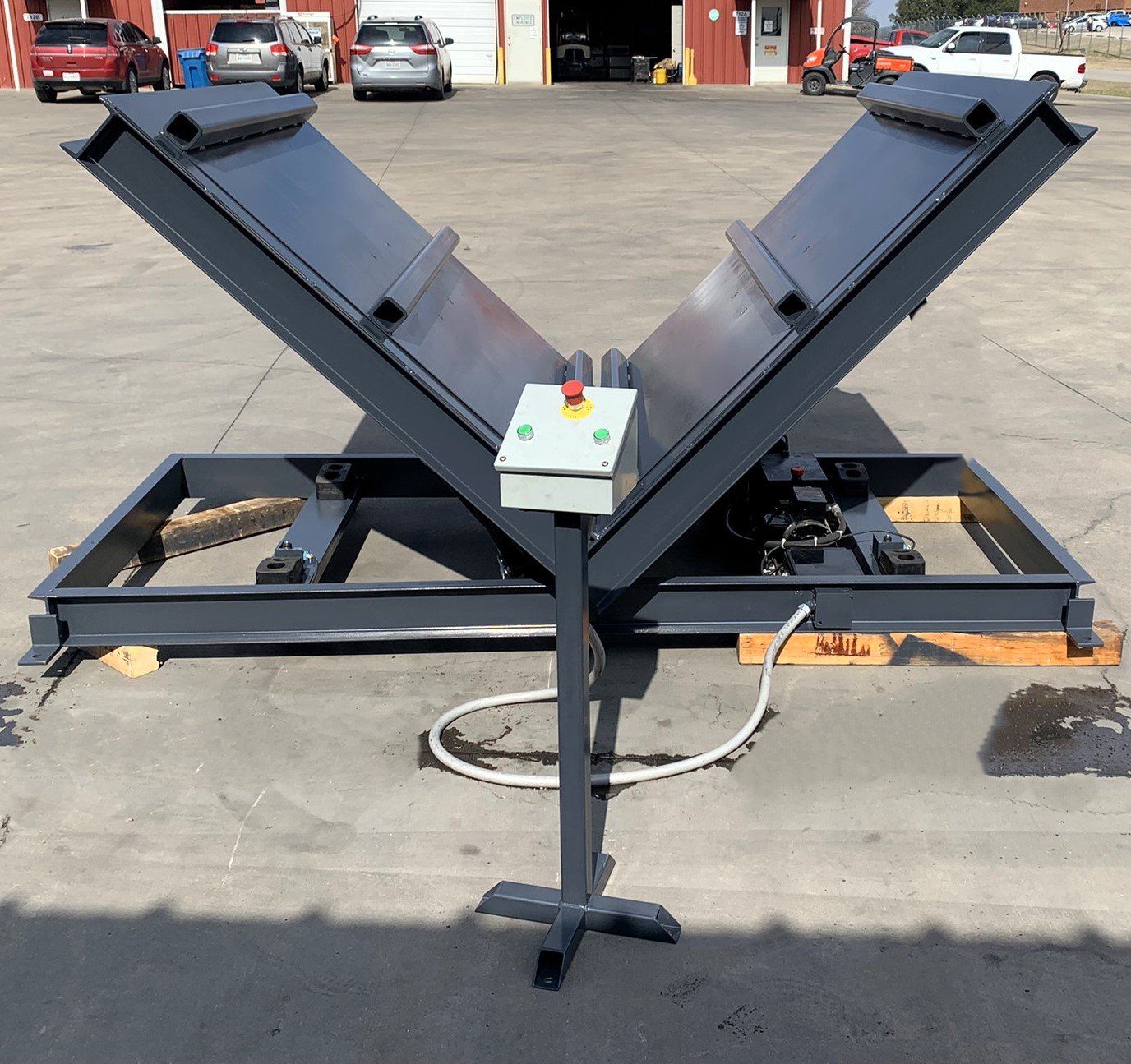

Pack Flipper

CFHYD

Coil Pack Flipper

  • Safely rotates a strand pack from a horizontal to a vertical orientation, or vice versa

  • Powered by two heavy-duty hydraulic cylinders and power unit

  • Can be used with either bare strand packs or extruded cable packs

Cable Pack Compressor

CPC

Cable Pack Compressor

  • Easy to use compressor for tight bundling of fabricated tendon packs

Reels

RLS

Solid Reel

  • Available in 62” and 66” diameter

RLC

Collapsible Reel

  • Available in 62” and 66” diameter

  • Take-apart with socket head cap screws

RLCC

Collapsible Reel, Clevis Pin

  • Available in 62” and 66” diameter

  • Take-apart with clevis pin assembly
